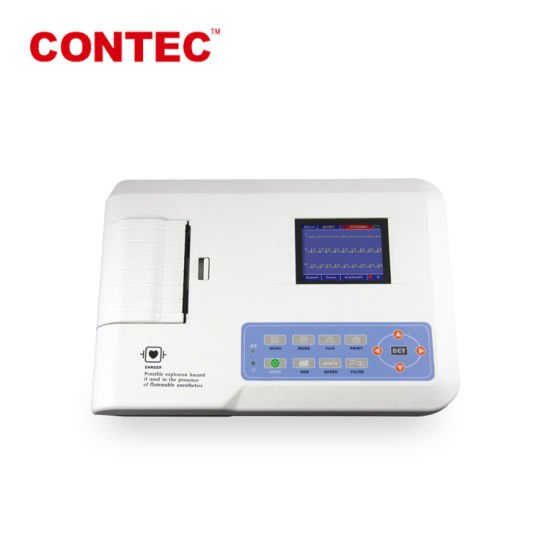

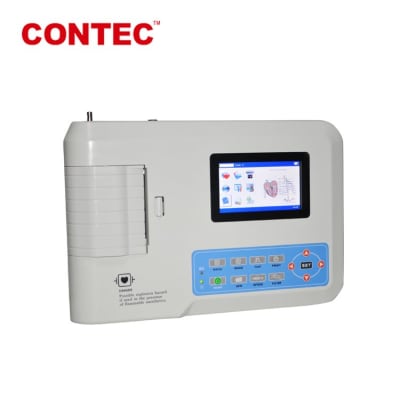

CONTEC ECG 300G Portable 3 Channel12 Lead EKG Portable ECG Machine

About CONTEC ECG 300G Portable 3 Channel12 Lead EKG Portable ECG Machine in Bangladesh

CONTEC ECG 300G Portable 12 Lead EKG Portable ECG Machine Brand Name CONTEC Model Number ECG300G Place of Origin Hebei, China Instrument classification Class II Type Examination Therapy Equipment Certificate CE ISO FDA SFDA ROHS Product name 12 Lead ECG 3 channel Weigh 1.6Kg Dimension 315mm(L) *215mm(W) * 77mm(H) Display 3.5″ TFT Color LCD display Optional Software which can transfer data to PC Multi-language interface and report CONTEC ECG 300G Portable 12 Lead EKG Portable ECG Machine Introduction ECG300 G 12 leads ECG is an electrocardiograph capable of capturing 12-lead ECG signals and printing waveforms through the thermal printing process. It features automatically measuring and diagnosing ECG waveform parameters in AUTO / Manual mode, prompting for “Leadoff” and “Paper shortage,” multi-language interface, AC / DC, selecting any lead rhythm, case database management. Function 1)Sync set of 12-lead ECG, digital signal processing software and high-quality ECG waveform via power frequency filter, baseline filter, and ECG signal filter.2)Display on a single screen of 3/6/12-lead ECG, print mode, sensitivity, paper speed, and filter status, etc.3)Multiply the manual, auto 43, auto 34 + 1, auto 34 + 1, auto 26 + 1, auto 26 + 1, auto 3-2+ 1, auto 3-2, auto 112 + 1, auto 112, rhythm 4, rhythm 3 and rhythm 2, etc. It is possible to adjust the printed waveform length and time print feature, which meets various requirements.4)With the auto-analysis and auto-diagnosis functions for standard ECG variables, include details of measurement and auto-diagnosis for HR, P-R duration, P Length, QRS Duration, T Period, Q-T period, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc.5)Store up to 1000 cases built-in memory, easy for case review and statistics.6)Multi-language interface and reporting (Chinese, English, Spanish, Turkish, Polish, French, German, Portuguese, Russian, Ukrainian, Serbian and Slovenian). Performance Input mode: floating and defibrillation safety Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB) CMRR: > 60dB, > 100dB(add filter) Time constant: 3.2s Patient leakage current: < 10μA Calibration voltage: 1mV Sensitivity: 2.5, 5, 10, 20, 40 mm / mV ±5 percent, normal sensitivity: 10mm / mV±2 percent Noise level: < 15μVp-p Current input circuit: Sampling accuracy: 12-bit Safety classification: class I, type CF and defibrillation-proof part Recording mode: thermal printing device Auto recording: set auto record format and mode, change leads automatically, calculate and evaluate. Rhythm recording: set rhythm recording format and mode, calculate and analyze automatically. Manual recording: set the record format, switch manually Measures of measurement: HR, P-R duration, P Length, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) Paper size: 80mm(W)20m(L) Sampling frequency: 1000Hz EMG interference filter: 25Hz/35Hz (-3dB) Power frequency filter: AC 50Hz/60Hz(-20dB) Paper speed: Auto: 25, 50mm / s, ±5 percent Rhythm
